Problem statement
Modern AI teams spend millions on GPUs, only to watch them sit idle.
Network, storage, scheduling, physical layout, and operations all determine whether GPUs actually deliver performance. Yet the default response to slow training or poor utilization is still the same:
Buy more GPUs.
That instinct doesn’t solve the problem. In many cases, it makes it worse. If you’ve ever stared at a dashboard showing $40K GPUs running at 12% utilization, you already know the truth:
GPUs are rarely the problem. Everything around them is.
GPUs don’t go idle because there’s no work. They go idle while waiting for data, peers, scheduling decisions, or broken assumptions elsewhere in the system. This field guide breaks down the most common reasons GPUs sit idle, organized by the layers that quietly sabotage performance.
GPU utilization is an end-to-end synchronization problem, not a compute problem.
Why Do GPUs Sit Idle in AI Clusters?
Short answer: GPUs sit idle because the surrounding infrastructure can’t deliver data, coordination, and resources at GPU speed.
Even a single weak layer in network, storage, scheduling, physical topology, or operations can cause GPUs to wait. When that happens, utilization collapses, costs skyrocket, and scaling stops working.
Common GPU Bottlenecks in AI Infrastructure
| Infrastructure Layer | Primary Bottleneck | Observable Symptom |
|---|---|---|
| Network | Insufficient collective bandwidth | GPUs are idle during all reduce |
| Storage | Unpredictable I/O throughput | GPUs stall between batches or epochs |
| Scheduling | Allocation ≠ utilization | GPUs “allocated” but underutilized |
| Physical Layout | Poor topology and placement | Identical nodes perform inconsistently |
| Operations | Drift and degraded hardware | Non reproducible performance issues |
1. Network: The Silent GPU Killer
Modern AI workloads are network-bound far more often than people admit. The network is the most critical element of an AI system, ensuring that data from storage devices keeps the GPUs “fed.”
GPUs in distributed training spend a large portion of each step waiting for collective communication to be completed. When network latency varies or a single peer is slow, every GPU is forced to wait at synchronization points, turning communication delays directly into idle compute time. Even high‑bandwidth fabrics leave GPUs idle if they were not designed to handle many‑to‑many collective traffic consistently.
Common Network Failure Modes
- Under-provisioned east–west bandwidth:
Training jobs stall during all-reduce because the fabric can’t keep up. - Ethernet used where InfiniBand (or equivalent) was assumed:
Latency variance kills scaling efficiency. - Improper leaf–spine ratios:
Oversubscription looks fine on paper until GPUs synchronize. - No congestion control tuning:
Packet loss = retransmits = idle SMs (streaming multiprocessors).
What It Looks Like in Practice
- GPU utilization spikes, then flatlines during synchronization phases.
- Scaling efficiency collapses beyond 4–8 nodes.
- “Network jitter” blamed on everything except design.
Rule of thumb
If your network design wasn’t explicitly built for collective communication, your GPUs will wait on each other more than they compute.
2. Storage: Feeding the Beast (or Starving It)
GPUs don’t just need data; they need it fast, predictably, and in parallel.
When storage can’t keep up, GPUs idle between batches, epochs, or checkpoints, even if raw disk benchmarks look impressive. Brief I/O stalls drain prefetch queues and leave GPUs waiting between batches, regardless of how fast the storage looks in benchmarks. From the GPU’s perspective, inconsistent storage performance is indistinguishable from slow storage.
Common failure modes
- Shared NAS for training data:
Fine for prototypes, disastrous at scale. - Metadata bottlenecks:
Small file workloads crush poorly tuned filesystems. - No data locality strategy:
Every epoch becomes a storage storm. - Checkpointing pauses:
GPUs idle while state dribbles to disk.
What It Looks Like
- GPUs idle at epoch boundaries.
- High I/O wait with low disk utilization.
- Training time dominated by “data loading”.
Rule of thumb
If storage can’t sustain peak throughput while serving multiple jobs, GPUs will idle between batches even if benchmarks look good.
3. Scheduling: Death by a Thousand Queues
Even with fast networks and storage, GPUs still sit idle if the scheduler doesn’t understand how GPUs are used.
Schedulers decide who gets GPUs, when, and how efficiently. Legacy schedulers can be incredibly inefficient because their allocation equals utilization. When a job underutilizes its GPUs due to I/O, CPU, or synchronization stalls, those GPUs remain reserved but idle, blocking other work. This causes clusters to appear fully allocated while real GPU utilization remains low.
Common Scheduling Failure Modes
- Thinking Allocation = Utilization:
It does not, and it can cost millions. - Gang scheduling not enforced:
Distributed jobs wait for missing ranks. - Fragmented GPU allocation:

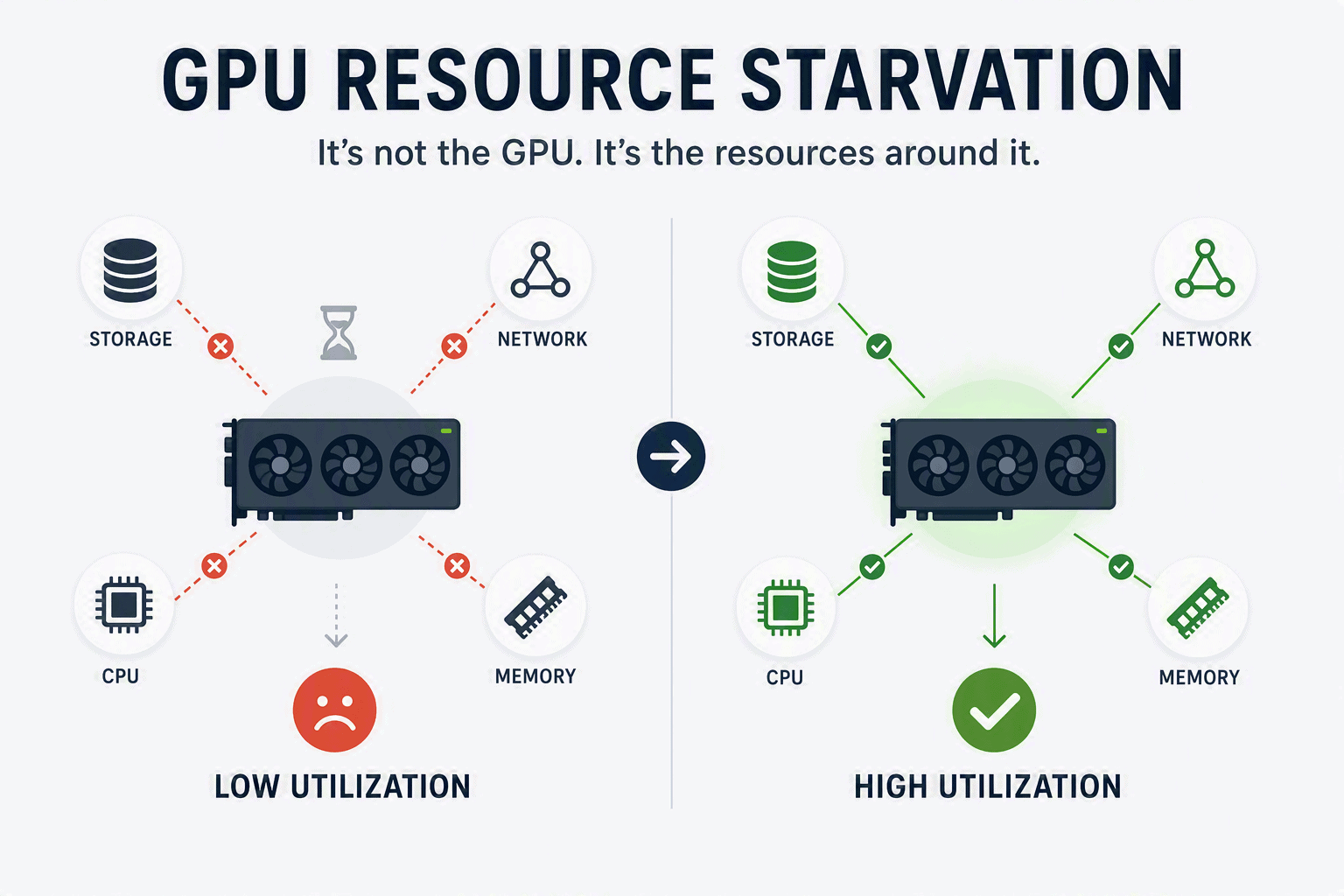

Jobs start, stall, or fail silently. - CPU, memory, or NIC starvation:
GPUs are assigned, but other required resources are not available to them, so the GPUs remain idle until those resources are available. - No preemption or priority awareness:

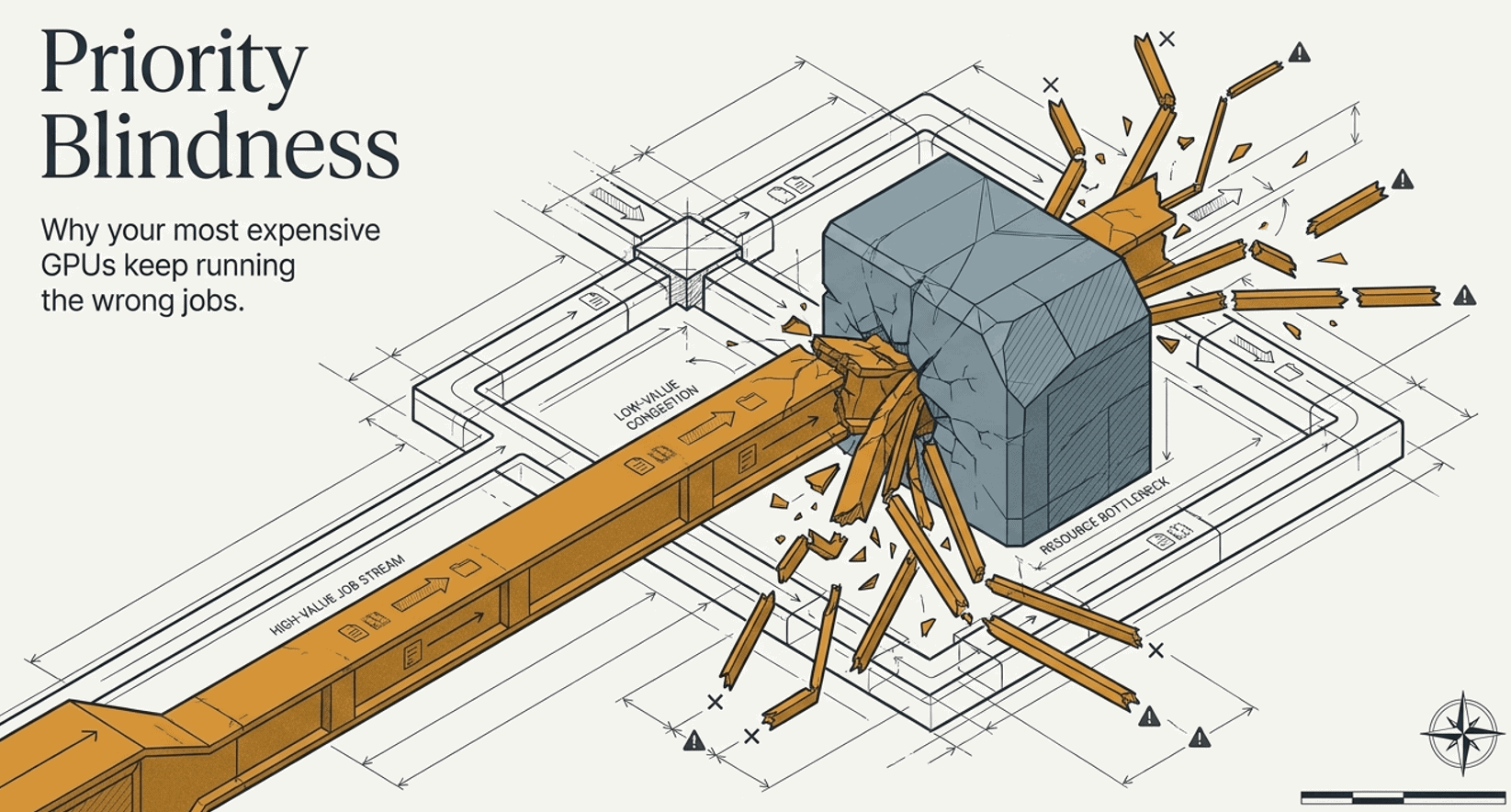

Big problems arise when expensive GPUs run low-value jobs, preventing high-value jobs from running.
What It Looks Like in Practice
- GPUs “allocated” but underutilized.
- Long queue times despite free capacity.
- Jobs stuck initializing forever.
Rule of thumb
A scheduler that treats GPUs as generic resources will waste them just like any other generic resource.
4. Physical Layout: When Distance Becomes Latency
Topology matters much more than most teams realize.
Small physical differences between nodes translate into synchronization delays during training. Uneven topology, extra hops, or misaligned PCIe and NUMA paths cause some GPUs to arrive late to collective operations, forcing all others to wait. In lockstep workloads, physical distance becomes idle time.
Common Physical Layout Failure Modes
- GPU nodes spread across racks:
Cross-rack traffic can kill collective ops. - Inconsistent NIC placement:
NUMA penalties throttle throughput. - Cable length and routing negligence:
Signal integrity issues masquerade as “random slowness.” - Power and cooling asymmetry:
Thermal throttling shows up as compute variance.
What It Looks Like in Practice
- Identical nodes perform differently.
- One “bad rack” nobody wants to use.
- Performance regressions after expansions.
Rule of thumb
If your physical layout wasn’t designed with the communication pattern in mind, software tuning won’t save you.
5. Ops: The Bottleneck Everyone Underestimates
Operational drift slowly turns working systems into underperforming ones. A single throttling GPU, a degraded NIC, or a misconfigured driver can stall every GPU in a distributed job. Without continuous validation, these issues accumulate and silently increase GPU idle time.
Operations is where theoretical performances go to die.
Common Operational Failure Modes
What It Looks Like in Practice
- Mysteries such as “It worked last week”.
- Non-reproducible performance issues.
- GPUs idle while engineers work on debugging problems.
Rule of thumb
If ops aren’t automated, validated, and continuously monitored, your GPUs will pay the price.
How Teams Actually Fix Idle GPUs
| Bottleneck Layer | Typical Fix | Impact on GPU Utilization |
|---|---|---|
| Network | Fabric designed for collectives | Scales beyond single rack training |
| Storage | Parallel, locality-aware I/O | GPUs stay busy between batches |

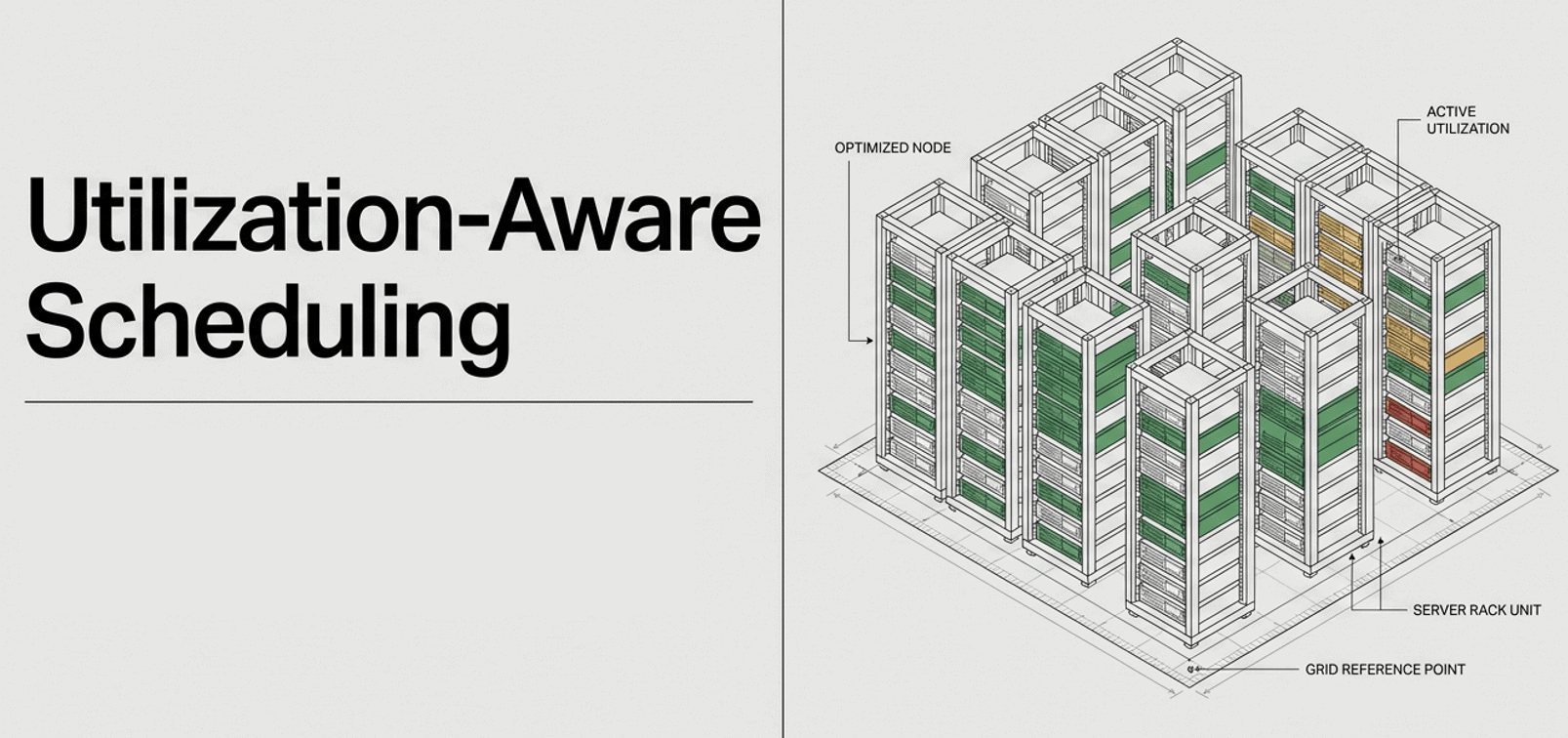

| Scheduling | Utilization-aware GPU scheduling | Higher throughput, lower queues |
| Layout | Topology-aligned placement | Predictable performance |
| Operations | Automated validation and health monitoring | Stable, repeatable training |
The Takeaway
Idle GPUs are rarely caused by a single mistake.
They’re caused by misalignment across layers.
High GPU utilization isn’t a hardware achievement.
It’s an infrastructure achievement.
AI performance is an infrastructure problem, not a hardware problem.
The teams that win aren’t the ones buying more GPUs.
They’re the ones eliminating the bottlenecks that keep GPUs waiting.
